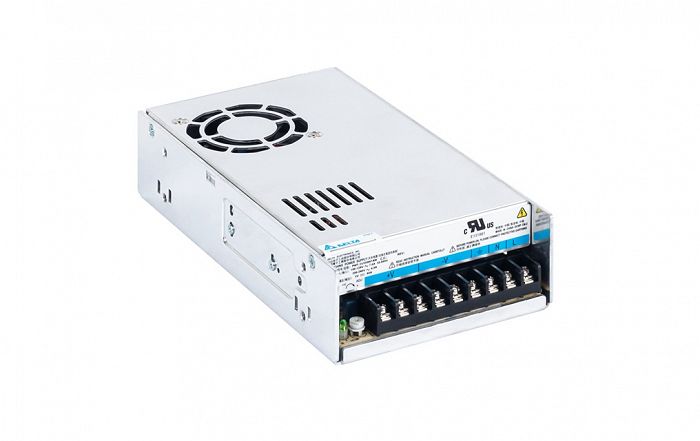

Delta PMT series
PMT-5V350W1AM
AC input range selectable by switch. Full Aluminum casing for light weight and corrosion resistant handling. Cold start at -40°C. MTBF > 700,000 hrs. as per Telcordia SR-332. Short Circuit / Overvoltage / Overload Protections. Designed for 5,000m operating altitude.
Main specifications pmt-5v350w1aM:
Input Voltage Range: 90-132Vac ( Selectable by switch 180-264 Vac )
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 5V
Output Voltage Adjustment Range: 4.50-5.50Vdc
Nominal Output Current: 60A
Output Power: 300W
Dimensions (L x W x D) : 215 x 115 x 50 mm
Dimensions (L x W x D) : 8.46" x 4.53" x 1.97"
Unit Weight : 0.81 kg (1.79 lb)
