Delta PMT series

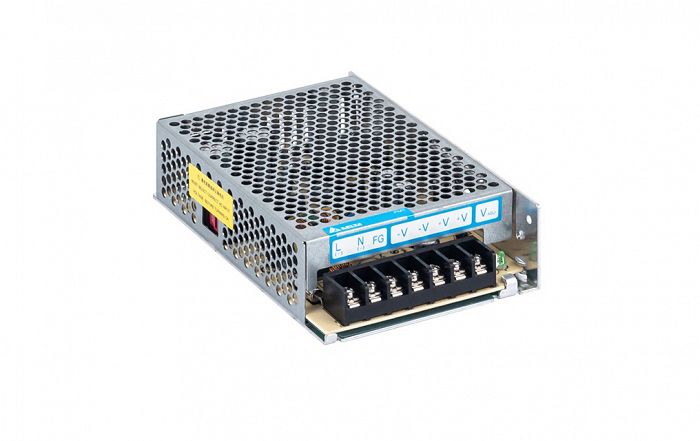

PMT-12V100W1AA
Conforms to harmonic current IEC/EN 61000-3-2, Class ASelectable AC Switch (90-132Vac, 180-264Vac). High MTBF > 700,000 hrs. as per Telcordia SR-332. Versatile configuration options (Enclosed, L Frame). Versatile connector options (Terminal Block, Front Face, Harness).
Main specifications pmt-12v100w1aA:
Input Voltage Range: 90-132Vac ( Selectable by switch 180-264 Vac )
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 12V
Output Voltage Adjustment Range: 11.4-13.2Vdc
Nominal Output Current: 8.5A
Output Power: 102W
Dimensions (L x W x D) : 158 x 97 x 38 mm
Dimensions (L x W x D) : 6.22" x 3.82" x 1.50"
Unit Weight : 0.36 kg (0.79 lb)
