Delta PMT series

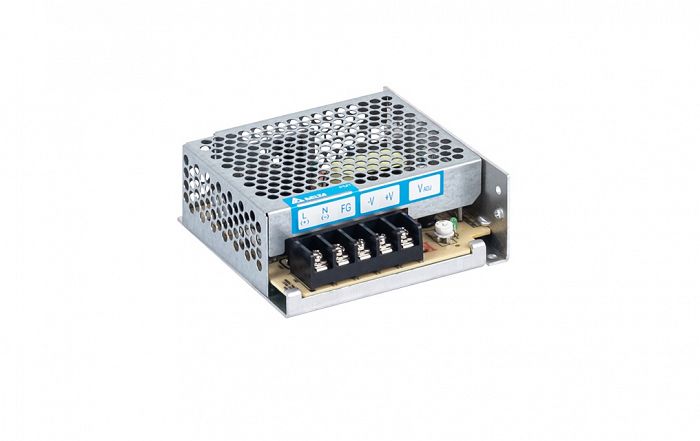

PMT-24V35W1AA
Universal AC input range. Power will not de-rate from input voltage 90Vac to 264Vac. High MTBF > 700,000 hrs per Telcordia SR-332. Short Circuit / Overvoltage / Overload / Over Temperature Protections. Versatile connector options (Terminal Block, Front Face, Harness).
CONFIGURATION OPTIONS
T – EnclosedL – L Frame *
B – Open Frame (Bareboard) *
* Options
Main specifications pmt-24v35w1aA:
Input Voltage Range: 85-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 22-28Vdc
Nominal Output Current: 1.46A
Output Power: 35W
Dimensions (L x W x D) : 98 x 98 x 38 mm
Dimensions (L x W x D) : 3.86" x 3.86" x 1.50"
Unit Weight : 0.22 kg (0.49 lb)
