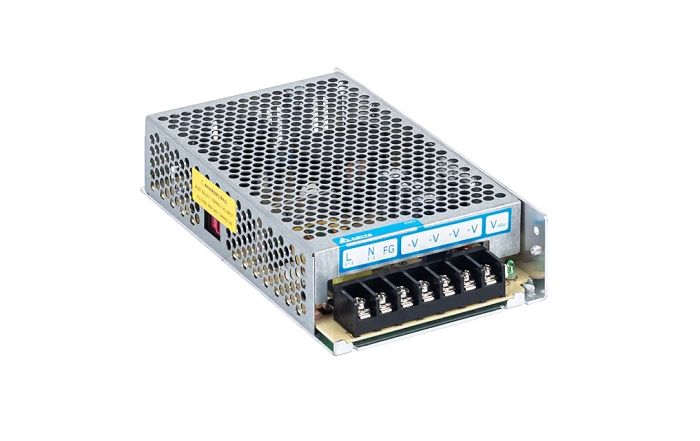

Delta PMT series
PMT-24V150W1AA
Conforms to harmonic current IEC/EN 61000-3-2, Class A. Selectable AC Switch (90-132Vac, 180-264Vac). High MTBF > 700,000 hrs. as per Telcordia SR-332. Versatile configuration options (Enclosed, L Frame). Versatile connector options (Terminal Block, Front Face, Harness).
Main specifications pmt-24v150w1aa:
Input Voltage Range: 100-120Vac ( Selectable by switch 180-264 Vac )
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Nominal Output Current: 6.5A
Output Power: 150W
Dimensions (L x W x D) : 178 x 97 x 38 mm
Dimensions (L x W x D) : 7.01" x 3.82" x 1.50"
Unit Weight : 0.48 kg (1.06 lb)
