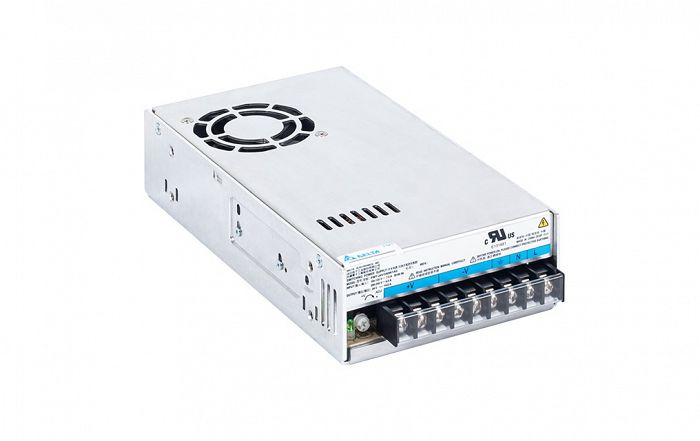

Delta PMT series

AC input range selectable by switch. Full Aluminium casing for light weight and corrosion resistant handling. Built-in automatic fan speed control circuit. MTBF > 700,000 hrs. as per Telcordia SR-332. Short Circuit / Overvoltage / Overload / Over Temperature Protection.

Main specifications pmt-24v350w1ag:

Input Voltage Range: 90-132Vac ( Selectable by switch 180-264 Vac )

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24V

Output Voltage Adjustment Range: 20.0-26.4Vdc

Nominal Output Current: 14.6A

Output Power: 350W

Dimensions (L x W x D) :  215 x 115 x 50 mm
Dimensions (L x W x D) :  8.46" x 4.53" x 1.97"

Unit Weight :  0.82 kg (1.81 lb)
