Delta PMT series

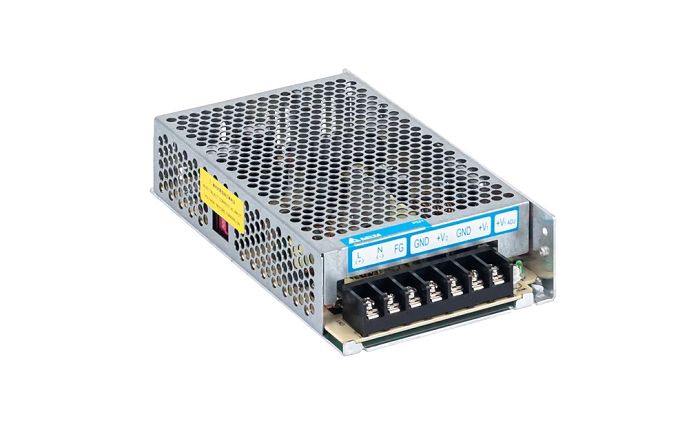

PMT-D2V100W1AA
Conforms to harmonic current IEC/EN 61000-3-2, Class A. Selectable AC Switch (88-132Vac, 176-264Vac). High MTBF > 700,000 hrs. as per Telcordia SR-332. Versatile configuration options (Enclosed, L Frame). Versatile connector options (Terminal Block, Front Face, Harness).
Main specifications pmt-d2v100w1aa:
Input Voltage Range: 88-132Vac ( Selectable by Switch 176-264Vac )
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24/5V
Output Voltage Adjustment Range: 21.6-26.4Vdc
Nominal Output Current: 3.5A / 3A
Output Power: 99W
Dimensions (L x W x D) : 178 x 97 x 38 mm
Dimensions (L x W x D) : 7.01" x 3.82" x 1.50"
Unit Weight : 0.42 kg (0.93 lb)
