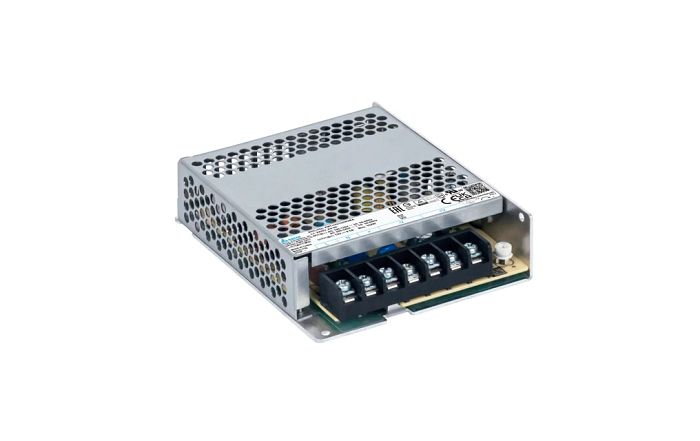

Delta PMT2 series
PMT-12V100W2BA
Household appliance approvals for pollution degree 3 to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. Universal AC input voltage range. No load power consumption < 0.3W. Low profile design : 30mm height. Over voltage category III. Conforms to harmonic current IEC/EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332.
Main specifications pmt-12v100w2Ba:
Nominal Input Voltage: 100-240Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 12V
Output Voltage Adjustment Range: 10.8-13.2Vdc
Output Current: 8.5A
Output Power: 102W
Dimensions: 129 x 97 x 30 mm (5.08" x 3.82" x 1.18")
Unit Weight: 0.285 kg (0.63 lb)
