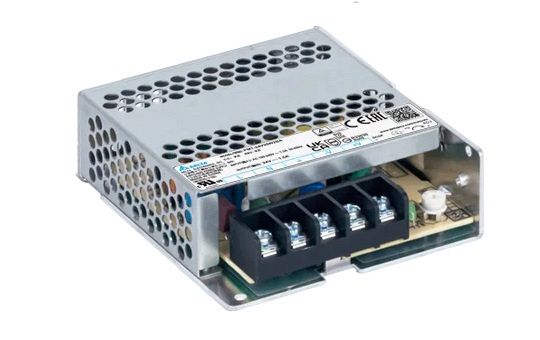

Delta PMT2 series
PMT-12V50W2BA
Household appliance approvals for pollution degree 3 to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
Universal AC input voltage range.No load power consumption < 0.2W.. Low profile design : 30mm height. Over voltage category III. Conforms to harmonic current IEC/EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332.
Main specifications pmt-12v50w2Ba:
Nominal Input Voltage: 100-240Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 12V
Output Voltage Adjustment Range: 10.8-13.2Vdc
Output Current: 4.2A
Output Power: 50W
Dimensions: 99 x 82 x 30 mm (3.90" x 3.23" x 1.18")
Unit Weight: 0.176 kg (0.39 lb)
