Delta PMT2 series

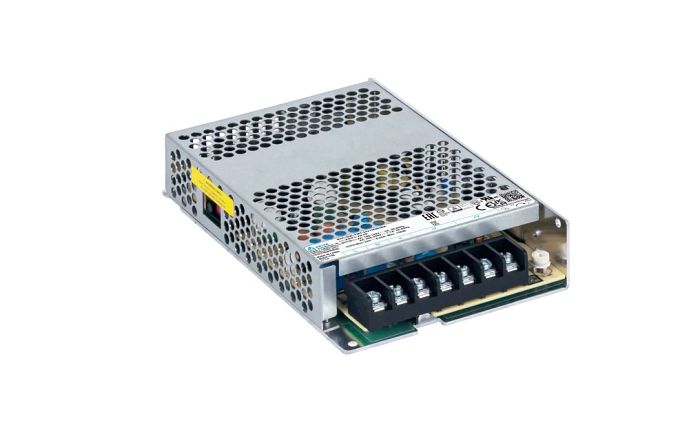

PMT-24V150W2BA
Household appliance approvals for pollution degree 3 to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. AC input voltage range selectable by switch (90-132Vac, 170-264Vac). No load power consumption < 0.5W. Low profile design: 30mm height. Over voltage. category III. Conforms to harmonic current IEC/EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332.
Main specifications pmt-24V150W2BA:
Nominal Input Voltage: 100-120Vac, 200-240Vac (Selectable by Switch)
Input Frequency Range:47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 21.6-26.4Vdc
Output Current: 6.25A
Output Power:150W
Dimensions:159 x 97 x 30 mm (6.26" x 3.82" x 1.18")
Unit Weight: 0.354 kg (0.78 lb)
