Delta PMT2 series

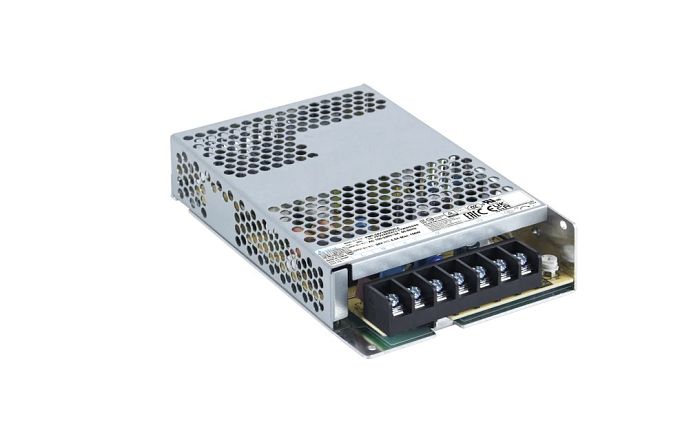

PMT-24V150W2CA
Household appliance approvals according to IEC/BS EN/EN 60335-1, IEC/BS EN/EN 61558-1 and IEC/BS EN/EN 61558-2-16. Universal AC input voltage range. No load power consumption < 0.3 W. Low profile design: 30 mm height. OVC III, Pollution Degree 3. Wide operating temp -30°C ~70°C (Support -40°C cold start). Conforms to harmonic current IEC/BS EN/EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332.
Main specifications pmt-24V150W2CA:
Nominal Input Voltage: 100-240 Vac
Input Frequency Range:47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 21.6-26.4 Vdc
Output Current: 0-6.5A
Output Power:156W
Dimensions:159 x 97 x 30 mm (6.26” x 3.82” x 1.18”)
Unit Weight: 0.392 kg (0.86 lb)
