Delta PMT2 series

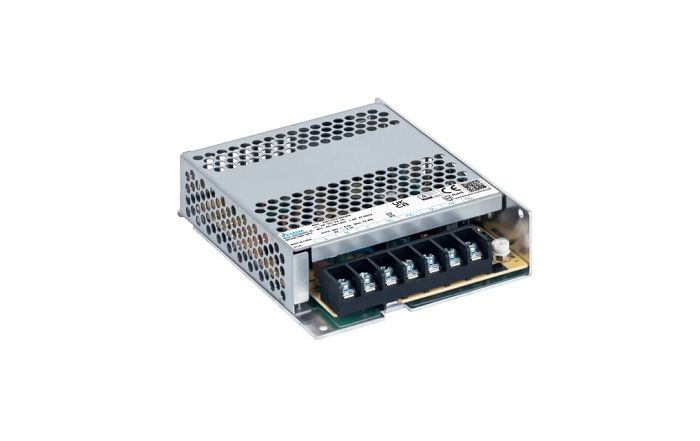

PMT-D1V75W2BA
Isolated & non-isolated Output & Ground for CH1 & CH2. Household appliance approvals to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. Universal AC input voltage range. No load power consumption < 0.3W. Low profile design : 30mm height. OVC III, Pollution Degree 3. Conforms to harmonic current IEC/EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332.
Main specifications PMT-D1V75W2BA:
Nominal Input Voltage: 100-240 Vac
Input Frequency Range:47-63Hz
Nominal Output Voltage: 5V,12V
Output Voltage Adjustment Range: V1: Fixed; V2: 10.8 – 13.2V
Output Current: 5A,4A
Output Power: 73W
Dimensions: 129 x 97 x 30 mm (5.08” x 3.82” x 1.18”)
Unit Weight: 0.276 kg (0.61 lb)
