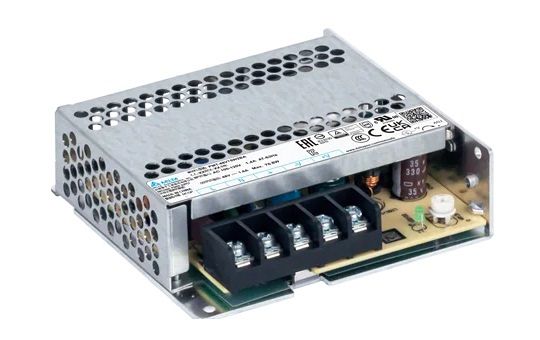

Delta PMT2 series
PMT-48V75W2BA
Household appliance approvals to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. Universal AC input voltage range. No load power consumption < 0.3W. Low profile design : 30mm height. OVC III, Pollution Degree 3. Wide operating temp -30°C ~70°C (Support -40°C cold start). Conforms to harmonic current IEC/EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332. Compliance with SEMI-F47.
Main specifications PMT-48V75W2BA:
Nominal Input Voltage: 100-240 Vac
Input Frequency Range:47-63Hz
Nominal Output Voltage: 48V
Output Voltage Adjustment Range: 43.2-52.8Vdc
Output Current: 1.6A
Output Power: 76.8W
Dimensions: 99 x 97 x 30 mm (3.90” x 3.82” x 1.18”)
Unit Weight: 0.216 kg (0.48 lb)
