Delta PMT2 series

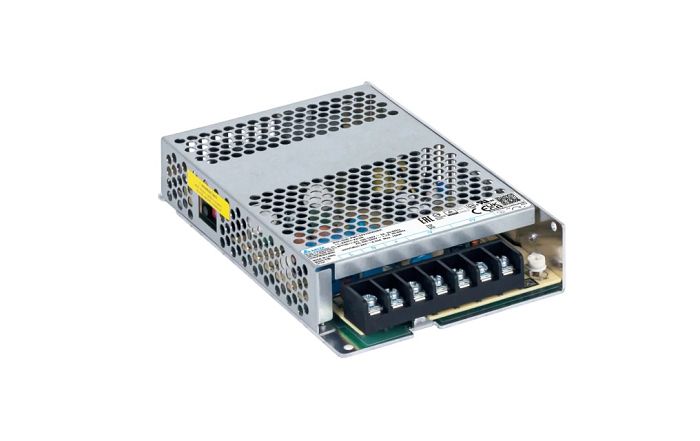

PMT-36V150W2BA
Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. AC input voltage range selectable by switch (90-132Vac, 180-264Vac). No load power consumption < 0.5W. Low profile design: 30mm height. OVP III, Pollution Degree 3. Wide operating temp -30°C ~ 70°C (Support -40°C cold start). Conforms to harmonic current IEC/EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332. Compliance with SEMI-F47.
Main specifications pmt-36V150W2BA:
Nominal Input Voltage: 100-120Vac, 200-240Vac (Selectable by Switch)
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 36V
Output Voltage Adjustment Range: 32.4-39.6Vdc
Output Current: 4.3A
Output Power: 154.8W
Dimensions: 159 x 97 x 30 mm (6.26” x 3.82” x 1.18”)
Unit Weight: 0.354 kg (0.78 lb)
