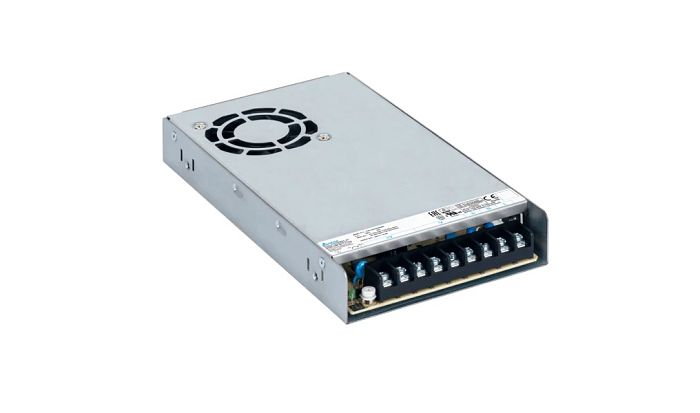

Delta PMT2 series
PMT-24V350W2BR
Household appliance approvals for pollution degree 3 to IEC/EN/BS EN 60335-1, IEC/EN/BS EN 61558-1 and IEC/EN/BS EN 61558-2-16. AC input voltage range selectable by switch (90-132Vac, 180-264Vac). No load power consumption < 0.5W. Low profile design: 30mm height. Over voltage category III. Wide operating temp -30°C ~70°C (Support -40°C cold start). Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332.
Main specifications pmt-24V350W2BR:
Nominal Input Voltage: 100-120Vac, 200-240Vac (Selectable by Switch)
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 21.6-26.4 Vdc
Output Current: 14.6A
Output Power: 350.4W
Dimensions: 215 x 115 x 30 mm (8.46” x 4.53” x 1.18”)
Unit Weight: 0.833 kg (1.84 lb)
