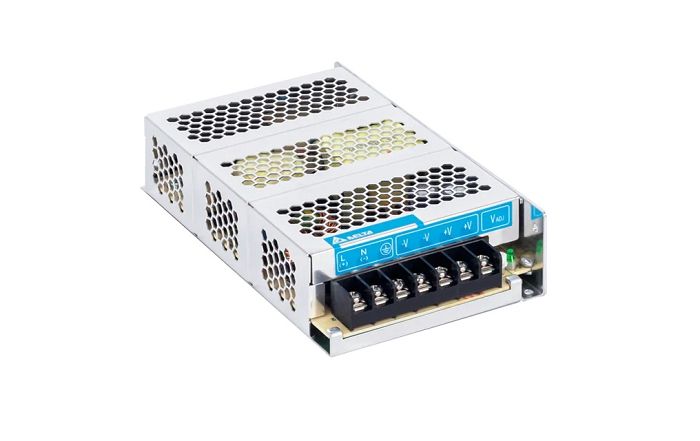

Delta PMC series
PMC-12V150W1BA
Universal AC input range from 85Vac to 264Vac without power de-rating. Full Aluminum casing for light weight and corrosion resistant handling. High MTBF > 700,000 hrs as per Telcordia SR-332. Overvoltage / Overcurrent / Over Temperature Protections. IP20 Compliant (for PMC-12V150W1BJ).
Main specifications pmc-12v150w1BA:
Input Voltage Range: 85-264Vac ( 125-375 Vdc )
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 12V
Output Voltage Adjustment Range: 11-14Vdc
Nominal Output Current: 12.5A
Output Power: 150W
Dimensions (L x W x D) : 178 x 97 x 38 mm
Dimensions (L x W x D) : 7.01" x 3.82" x 1.50"
Unit Weight : 0.54 kg (1.19 lb)
