Delta PMC series

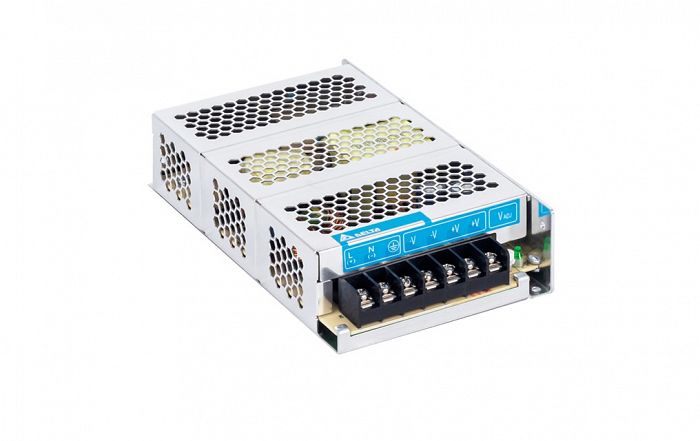

PMC-24V150W1BA
Universal AC input range. Allow low input voltage from 85Vac to 264Vac without power de-rating. High efficiency and PF factor to conserve energy. Full Aluminum casing for light weight and corrosion resistant handling. MTBF > 700,000 hrs. as per Telcordia SR-332. Overvoltage / Overcurrent / Over Temperature Protections. IP20 Terminal Block and Front Face Terminal Block options.
Main specifications pmc-24v150w1bA:
Input Voltage Range: 85-264Vac ( 125-375 Vdc )
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 22-28Vdc
Nominal Output Current: 6.25A
Output Power: 150W
Dimensions (L x W x D) : 178 x 97 x 38 mm
Dimensions (L x W x D) : 7.01" x 3.82" x 1.50"
Unit Weight : 0.54 kg (1.19 lb)
