Delta PMC series

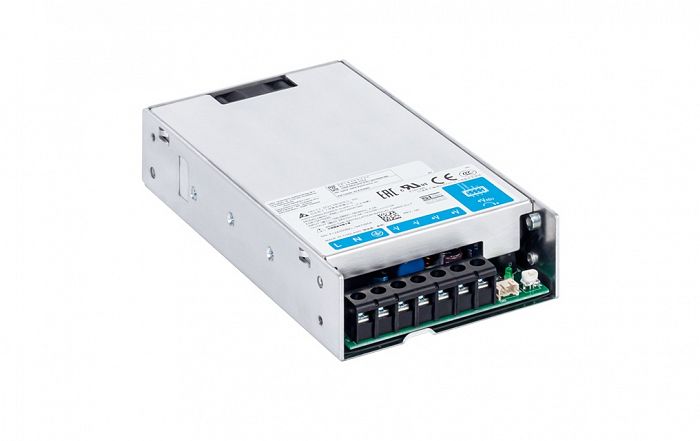

PMC-24V300W1BA
Universal AC input range from 85Vac to 264Vac without power de-rating. Full Aluminum casing for light weight and corrosion resistant handling. High PF > 0.99 @ 115Vac. Built-in Remote ON/OFF and 12V SB (Standby) / 0.5A. Overvoltage / Overcurrent / Over Temperature Protections. IP20 Certified.
Main specifications pmc-24v300w1ba:
Input Voltage Range: 85-264Vac ( 125-375 Vdc )
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 22-28Vdc
Nominal Output Current: 12.5A
Output Power: 300W
Dimensions (L x W x D) : 199 x 105 x 41 mm
Dimensions (L x W x D) : 7.83" x 4.13" x 1.61"
Unit Weight : 0.82 kg (1.81 lb)
