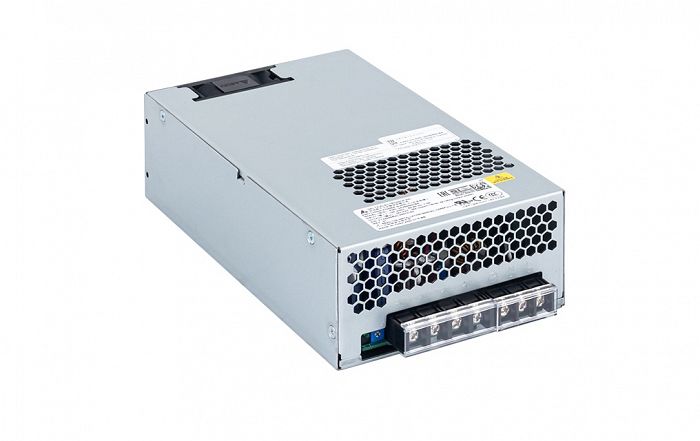

Delta PMC series
PMC-24V600W1BA
Universal AC input range. High PF > 0.99 @ 115Vac. Power Boost of 200% (1200W) for 5 seconds. Meet Surge Immunity IEC 61000-4-5, Level 4 (CM: 4kV, DM: 2kV). Built-in fan speed control and fan lock protection. Wide operating temperature range -20°C to 70°C. Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections.
Main specifications pmc-24v600w1ba:
Input Voltage Range: 85-264Vac ( 120-370 Vdc )
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 21.6-26.4Vdc
Nominal Output Current: 25A
Output Power: 600W
Dimensions (L x W x D) : 215 x 120 x 61 mm
Dimensions (L x W x D) : 8.46" x 4.72" x 2.40"
Unit Weight : 1.60 kg (3.53 lb)
