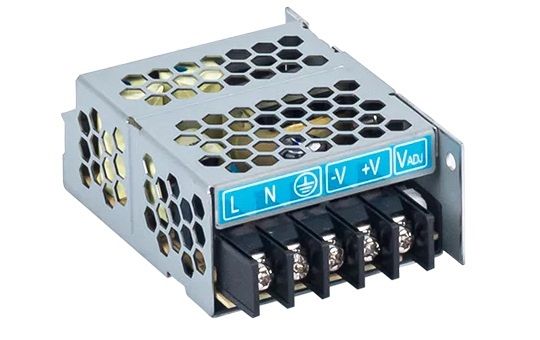

Delta PMC series
PMC-05V015W1AA
Universal AC input range from 85Vac to 264Vac without power de-rating. High operating ambient temperature, >60°C de-rating power. High MTBF > 700,000 hrs as per Telcordia SR-332. Overvoltage / Overcurrent / Over Temperature Protections.
Main specifications pmc-05v015w1aa:
Input Voltage Range: 85-264Vac ( 125-375 Vdc )
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 5V
Output Voltage Adjustment Range: 4.75-5.5Vdc
Nominal Output Current: 3A
Output Power: 15W
Dimensions (L x W x D) : 77 x 51 x 28 mm
Dimensions (L x W x D) : 3.03" x 2.01" x 1.10"
Unit Weight : 0.16 kg (0.35 lb)
