Delta PMC series

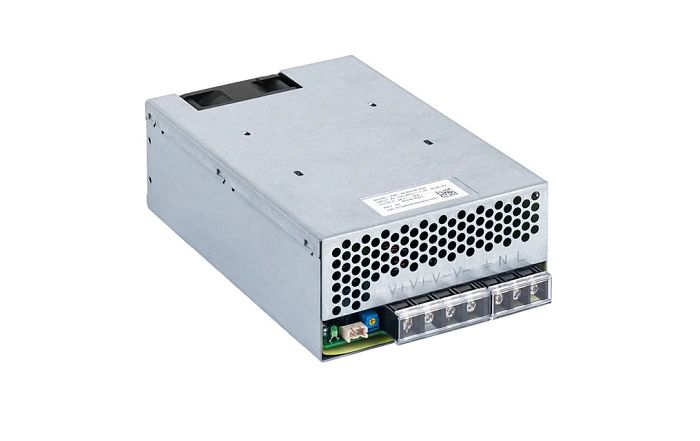

PMC-24V600W1RW
Universal AC input range. Active PFC with high PF value. Meet Surge Immunity IEC 61000-4-5, Level 4 (CM: 4kV, DM: 2kV). Wide operating temperature range -20°C to 70°C. Compact Size. Conformal coating on PCBA to protect against chemical and dust pollutants. Built-in constant current circuit for reactive loads. Design compliance with Japan PSE (DENAN).
Main specifications pmc-24V600W1RW:
Input Voltage Range: 85-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 21.6-27.6Vdc
Nominal Output Current: 25A
Output Power: 600W
Dimensions (L x W x D) : 190 x 120 x 61 mm (7.48” x 4.72” x 2.40”)
Unit Weight : 1.4 kg (3.09 lb)
