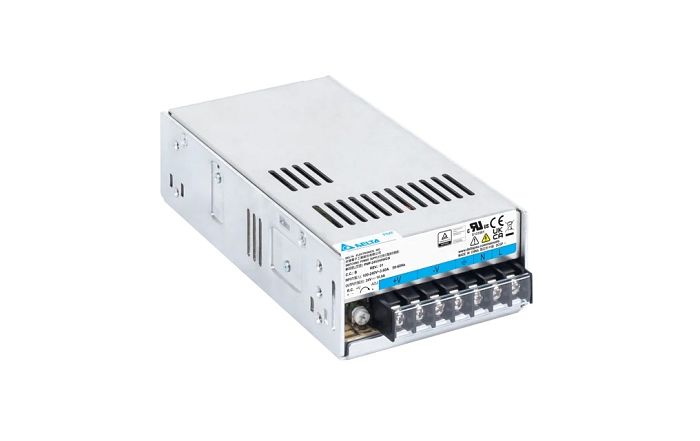

Delta PMF series
PMF-24V240WCGB
Universal AC input voltage. Built-in Active PFC and fan speed control. Full Aluminium casing for light weight and corrosion resistant handling. Conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D. Remote ON/OFF is available as an option. Cold start -20°C at 100% load (240W). Low leakage current < 0.6mA @ 240Vac. High MTBF > 700,000 hrs. as per Telcordia SR-332. Short Circuit / Overvoltage / Overcurrent / Over Temperature Protections.
Main specifications pmf-24v240wcGB:
Input Voltage Range: 85-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 21.6-26.4Vdc
Nominal Output Current: 10A
Output Power: 240W
Dimensions (L x W x D) : 190 x 93 x 50 mm
Dimensions (L x W x D) : 7.48" x 3.66" x 1.97"
Unit Weight : 0.66 kg (1.46 lb)
