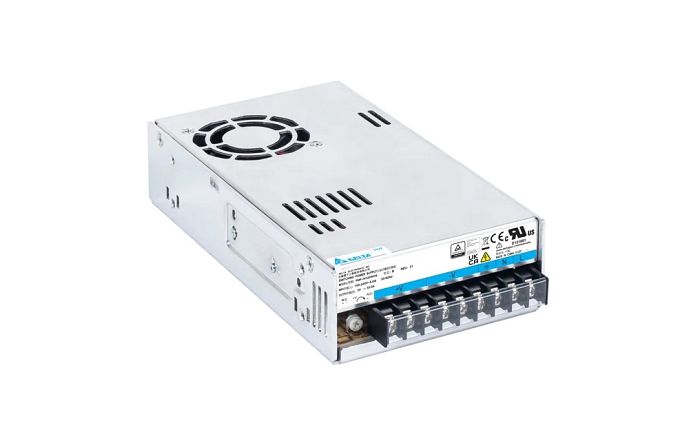

Delta PMF series
PMF-5V320WCGB
Universal AC input voltage. Built-in active PFC and fan speed control. Full corrosion resistant aluminium chassis. Conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D. Cold start -20°C at 100% load (275W). Remote ON/OFF is available as an option.
Main specifications pmf-5v320wcGB:
Input Voltage Range: 85-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 5V
Output Voltage Adjustment Range: 4.50-5.50Vdc
Nominal Output Current: 55A
Output Power: 275W
Dimensions (L x W x D) : 215 x 115 x 50 mm
Dimensions (L x W x D) : 8.46" x 4.53" x 1.97"
Unit Weight : 0.86 kg (1.90 lb)
