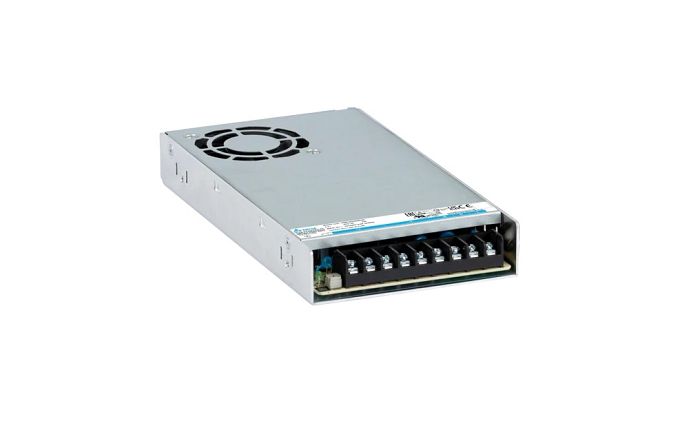

Delta PMR series
PMR-12V320W1AT
Universal AC input voltage. Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D. No load power consumption < 0.5 W. Low profile design: 30 mm height.Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. Wide operating temp -30°C ~70°C (Support -40°C cold start).
Main specifications pmr-12V320W1AT:
Input Voltage Range: 90-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 12V
Output Voltage Adjustment Range: 10.8-13.2 Vdc
Nominal Output Current: 26.7A
Output Power: 320W
Dimensions (L x W x D) : 215 x 115 x 30 mm (8.46" x 4.53" x 1.18")
Unit Weight : 0.643 kg (1.42 lb)
