Delta PMR series

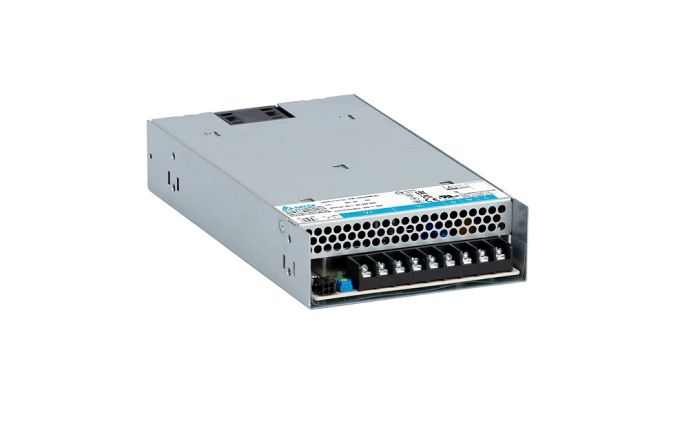

PMR-12V600W1BT
Universal AC input voltage. Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D. No load power consumption < 0.5 W. Low profile design: 30 mm height . Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. Wide operating temp -30°C ~70°C (Support -40°C cold start).
Main specifications PMR-12V600W1BT:
Input Voltage Range: 90-264 Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 12V
Output Voltage Adjustment Range: 10.8-13.2 Vdc
Nominal Output Current: 50A
Output Power: 600W
Dimensions (L x W x D) : 225 x 124 x 41 mm
Unit Weight : 1.2 kg (2.65 lb)
