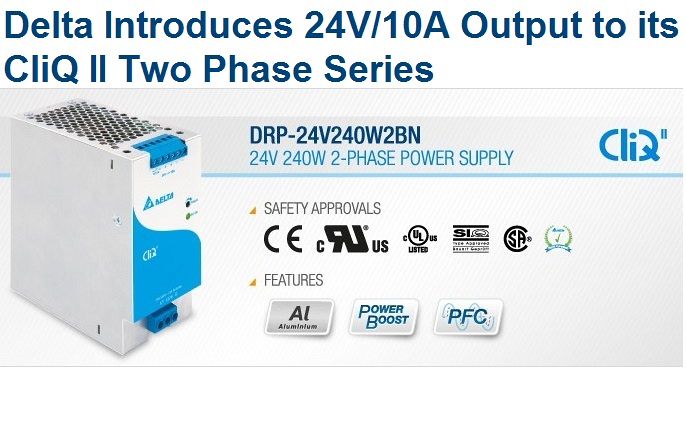

Delta Electronics extends the CliQ II DIN rail power supply series with 24V/10A output for input at two phase 2 x 180-550Vac (for L-L); single phase 180-305Vac (for L-N) and 254-780Vdc. The DRP-24V240W2BN features wide AC input voltage for single or two phase range. Such feature can protect the power supply from damage when user accidentally apply a two phase input on the single phase power supply. Other advantages include reduced external input protection components and improved installation time since there is only two phase connection.

The product offers 120% Power Boost lasting for 3 seconds. Like the rest of the CliQ family of products, conformal coating is applied on the PCBAs to protect against common dust and chemical pollutant often found in harsh industrial environments. Other major safety approvals are included.

Highlights & Features

Designed for single phase input 180-305Vac (for L-N) or 2 of 3-Phase system 2 x 180-550Vac (for L-L) or 254-780Vdc. Compact and corrosion resistant aluminium casing. High Efficiency > 90% and Power Boost of 120% for 3 seconds. Built-in constant current and hiccup during overload protection. Built-in DC OK Contact. Conformal coating on PCBAs to protect against common dust and chemical pollutants. Overvoltage / Overcurrent / Over Temperature/ Short Circuit Protections
