Delta LNV Wide Input LED Drivers

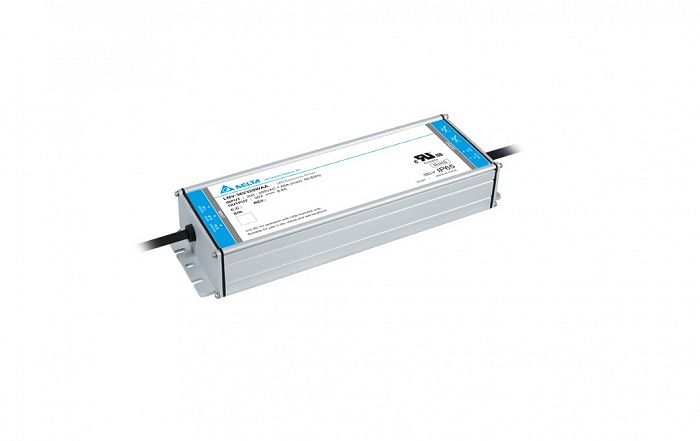

LNV-36V320WAAA
Designed for single phase (for L – N) or two phase (for L – L) wide input. 180-528Vac. Up to 94.0% efficiency. 6kV common mode & 4kV differential mode surge immunity. Active PFC. Meets IEC/EN 61000-3-2, Class C. Adjustable voltage & current; dimming options availabl. eIP65 or IP67 options for indoor and outdoor applications.
Main specifications lnV-36v320waaA:
Input Voltage Range: 180-528Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 36V
Output Voltage Adjustment Range: 33.0-40.0V
Output Current Adjustment Range: 4.45-8.90A
Output Current: 8.9A
Output Power: 320W
Dimensions: 262 x 90 x 43.8 mm (10.31" x 3.54" x 1.72")
Unit Weight: 1.19 kg (2.62 lb)
