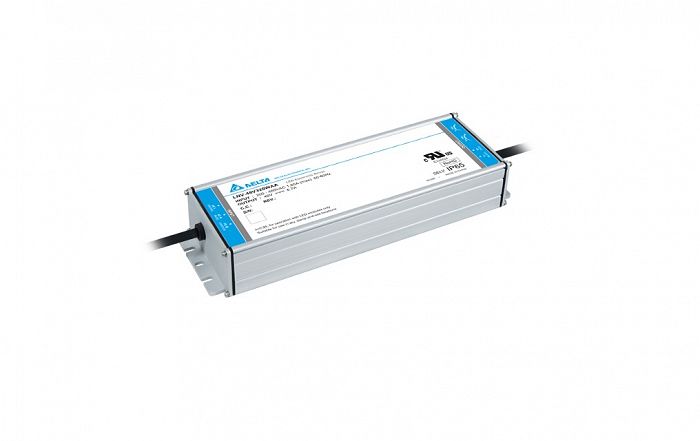

Delta LNV Wide Input LED Drivers
LNV-48V320WAAA
Designed for single phase (for L – N) or two phase (for L – L) wide input. 180-528VacUp to 94.0% efficiency. 6kV common mode & 4kV differential mode surge immunity. Active PFC. Meets IEC/EN 61000-3-2, Class C. Adjustable voltage & current; dimming options available. IP65 or IP67 options for indoor and outdoor applications.
Main specifications lnV-48v320waaA:
Input Voltage Range: 180-528Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 48V
Output Voltage Adjustment Range: 43.0-53.0V
Output Current Adjustment Range: 3.35-6.70A
Output Current: 6.7A
Output Power: 320W
Dimension: 262 x 90 x 43.8 mm (10.31" x 3.54" x 1.72")
Weight: 1.19 kg (2.62 lb)
