EUCO Arena Sport

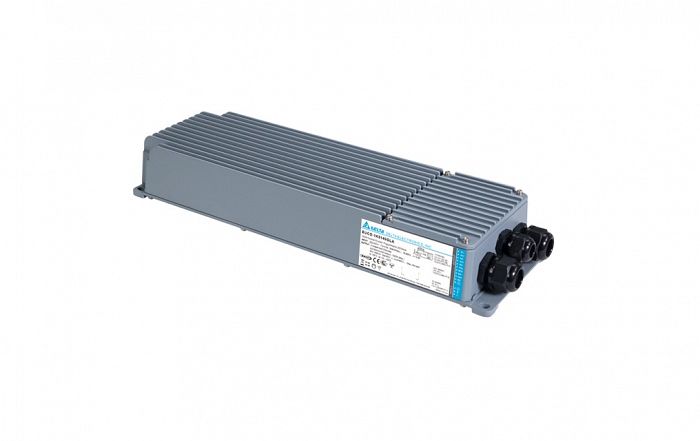

EUCO-1K5140GLA
Dimmable built-in constant current 3-channel LED Driver with DALI 2. Each channel independently programmable with output channels max output power of 500W (1500W total). Adjustable output current between 500mA to 1400 mA for each channel via I-programming tool. Very low pk–pk current ripple to 1% for stadium lighting. Dimming range 0.1% to 100 %. Max remote distance 200 meters. In compliance with Erp (EU) 2019/2020.
Main specifications EUCO-1K5140GLA:
Input Voltage Range: 198-440Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 360V
Output Current: 1.4A
Output Power: 1500W
Dimensions (L x W x D) : 500 x 152 x 77 mm (19.69” x 5.98” x 3.03”)
Unit Weight : 5.6 kg (12.35 lb)
