USVI Multi CV LED Driver

Constant voltage design
Universal input voltage 120-277VAC
Multi-Channel output and independent operating
Class 2 output
Wide operating temperature range -40°C to +55°C
Dry & Damp location rated for signage application

usvi

Model Name	Phase	Output Voltage	Output Current	Output Power	Input Voltage Range	Dimensions (L x W x H)
USVI-020012FA	Phase I	12V	1.7A	20W	90-305 Vac	132.5 x 34.0 x 25.4 mm
USVI-020024FA	Phase I	24V	0.85A	20W	108-305 Vac	132.5 x 34.0 x 25.4 mm
USVI-060012DE	Phase I	12V	5A	60W	108-305 Vac	148.2 x 45.6 x 25.4 mm
USVI-060012DG	Phase I	12V	5A	60W	108-305 Vac	148.2 x 45.6 x 25.4 mm
USVI-060012FE	Phase I	12V	5A	60W	108-305 Vac	148.2 x 45.6 x 25.4 mm
USVI-060012FF	Phase I	12V	5A	60W	108-305 Vac	140 x 43.4 x 30 mm
USVI-060012FG	Phase I	12V	5A	60W	108-305 Vac	148.2 x 45.6 x 25.4 mm
USVI-060012FFH	Phase I	12V	5A	60W	108-305 Vac	165.1 x 43.1 x 30 mm
USVI-060024DG	Phase I	24V	2.5A	60W	108-305 Vac	148.2 x 45.6 x 25.4 mm
USVI-060024FG	Phase I	24V	2.5A	60W	108-305 Vac	148.2 x 45.6 x 25.4 mm
USVI-060024FH	Phase I	24V	2.5A	60W	108-305 Vac	241.3 x 43.1 x 30.0 mm
USVI-060024FR	Phase I	24V	2.5A	60W	108-305 Vac	241.3 x 43.1 x 30 mm
USVI-080024FR1	Phase I	24V	3.33A	80W	108-305 Vac	241.3 x 43.1 x 30 mm
USVI-100024DE	Phase I	24V	4.15A	99.6W	108-305 Vac	241.3 x 43 x 25.4 mm
USVI-100024DG	Phase I	24V	4.15A	99.6W	108-305 Vac	241.3 x 43 x 25.4 mm
USVI-100024FE	Phase I	24V	4.15A	99.6W	108-305 Vac	241.3 x 43 x 25.4 mm

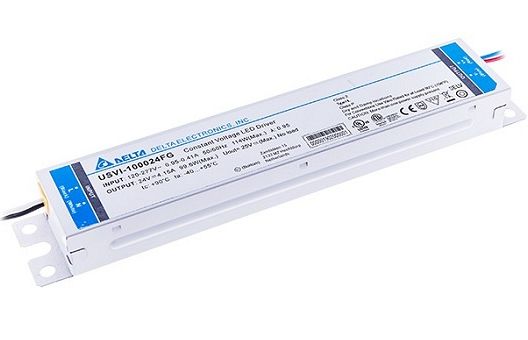

USVI-100024FG	Phase I	24V	4.15A	99.6W	108-305 Vac	241.3 x 43 x 25.4 mm
USVI-100024FH	Phase I	24V	4A	96W	108-305 Vac	241.3 x 43.1 x 30.0 mm
USVI-100024FR1	Phase I	24V	4A	96W	108-305 Vac	241.3 x 43.1 x 30 mm
USVI-120012FA	Phase I	12V	10A	120W	108-305 Vac	298.5 x 43.0 x 30.0 mm
USVI-180012FA	Phase I	12V	15A	180W	108-305 Vac	424.0 x 43.0 x 30.0 mm
USVI-200024FA	Phase I	24V	4A	192W	108-305 Vac	424.2 x 43.1 x 30 mm
USVI-240024FR	Phase I	24V	10A	240W	198-264Vac	240 x 70 x 37.5 mm
