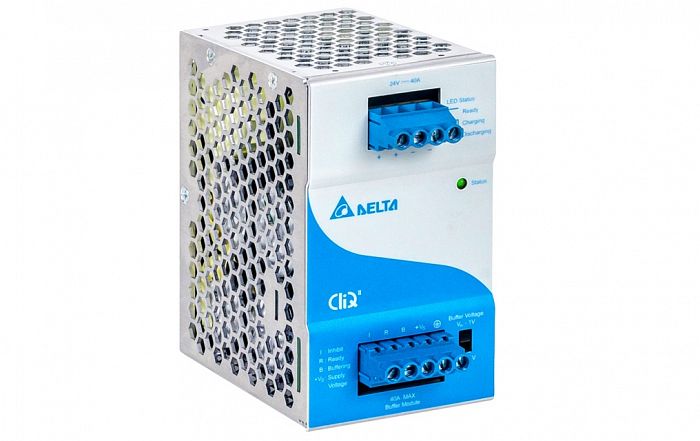

DRB-24V040ABN

Full corrosion resistant aluminium chassis. Minimum buffering time of 200ms @ 24V/40A. Flexible operating buffering voltage modes: Fixed mode at 22Vdc & Dynamic mode for Vin -1V. Supports parallel connection to extend buffering time. Conformal coating on PCBA to protect against chemical and dust pollutants.

Main specifications drb-24v040abn:

Nominal Input Voltage: 24Vdc

Input Voltage Range: 22.8-28.8Vdc

Input Current: Charging Mode: < 0.6A

Input Power (Standby Mode): 2.5W

Nominal Output Voltage: 24V

Nominal Output Current: 40A

Buffering Time: < 200ms Min @ 24V/40A Load, < 8s Min @ 24V/1A Load

Parallel Connection: Yes

Dimensions (L x W x D) :  121 x 70 x 120.1 mm

Dimensions (L x W x D) :  4.76" x 2.76" x 4.73"

Unit Weight :  0.90 kg (1.98 lb)
