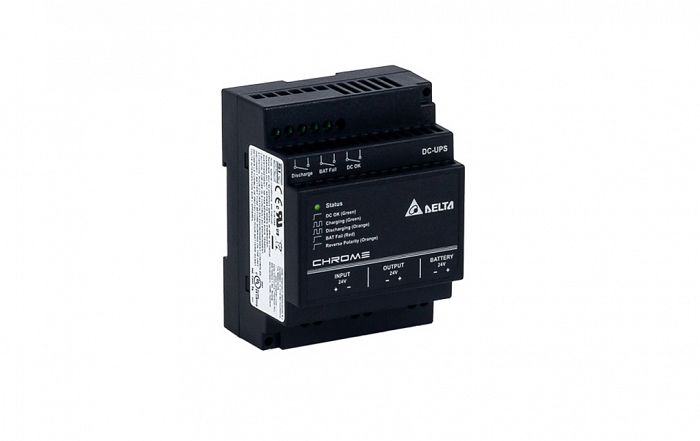

DRU-24V10ACZ

Suitable for 24V system up to 10A. Zero switch over time from loss of DC input to battery operation. Built-in diagnostic monitoring for DC OK, Discharge and Battery Fail by relay contacts. Full power entire temperature range from -20°C to +60°C. LED indicator for DC OK, Battery Charging, Battery Discharging, Battery Fail and Battery Reverse Polarity. High MTBF > 500,000 hrs as per Telcordia SR-332. Overvoltage / Overcurrent / Over temperature / Short circuit protections.

Main specifications dru-24v40ACZ:

Nominal DC Input Voltage: 24Vdc

DC Input Voltage Range: 24-28 Vdc

Input Current: Charging Mode: 0.5 ± 0.1A

Efficiency at 100% load:  Charging Mode: > 80.0%
                                         Buffering Mode: >99.0%

Charging Time: < 30 hr ± 5 hr for battery 24V/12AH

Nominal Output Voltage: 24V

Nominal Output Current: 10A

Output Voltage Range: 23-28Vdc

Dimensions (L x W x D) :  91.0 x 71.0 x 55.6 mm (3.58" x 2.80" x 2.19")

Unit Weight :  0.60 kg (1.32 lb)

Download datasheet
