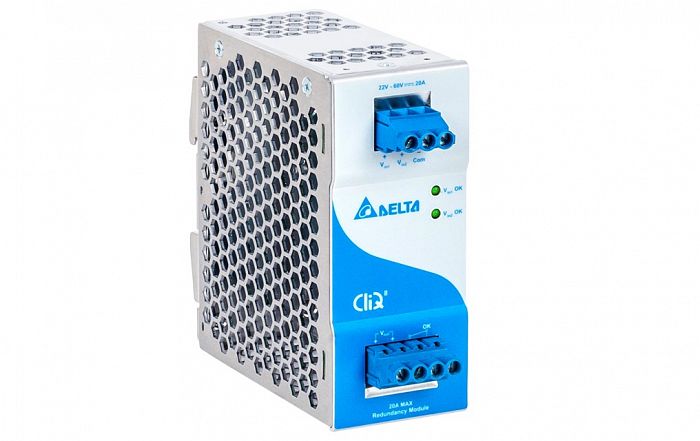

DRR-20A

RoHS Compliant. Relay alarm indirection. Built-in 2 channel DC OK signal. Caused by rugged handing. Conformal coating on PCBA to protect against chemical and dust pollutants. Class I, Div 2 Hazardous Locations. Ease of wire connection to terminals. Wide Input & Output Range 22-60 Vdc. Full corrosion resistance aluminium chassis even with deep scratches.

Main specifications DRR-20a:

Nominal Input Voltage: 24-48 Vdc

Input Voltage Range: 22-60 Vdc

Input Current: (1+1 Redundancy) =  Nom. 2 x 12.5Amps
(N+1 Redundancy) = Nom. 2 x 10 Amps
(Single use)= Nom. 20 Amps

Nominal Output Voltage: 24V

Nominal Output Current: 20A

Voltage Drop (Vin and Vout): Typical 0.65V

Dimensions (L x W x D) :  121 x 50 x 122.1 mm
Dimensions (L x W x D) :  4.76" x 1.97" x 4.81"

Dimensions (L x W x D) :

Unit Weight :  0.38 kg (0.84 lb)
