Protection Class II, Double Isolation (No Earth connection is required). Universal AC input voltage and full power from -25°C to +55°C operation. Power will not de-rate for the entire input voltage range. Up to 86.0% efficiency. Low earth leakage current < 0.25mA @ 264Vac. Conforms to harmonic current IEC/EN 61000-3-2, Class A. Overvoltage / Overcurrent / Over Temperature Protections

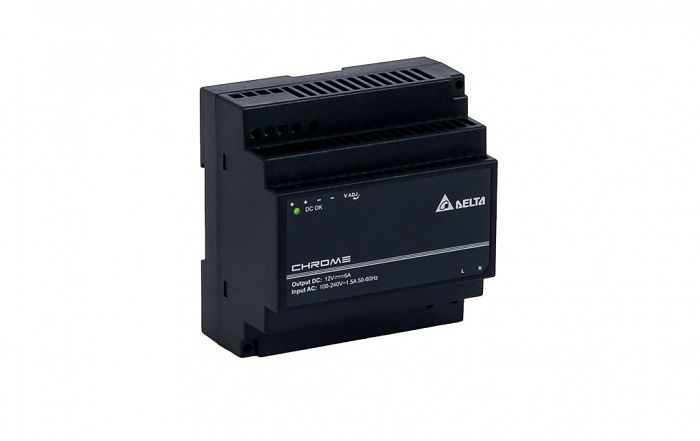

main specifications DRC-12V100W1AZ:

Input Voltage Range: 90-264Vac ( 125-375 Vdc )

Input Frequency Range: 47-63Hz

Nominal Output Voltage:12V

Output Voltage Adjustment Range: 12-14Vdc

Output Current: 6A

Output Power: 72W


Dimensions (L x W x D) :  91 x 89.9 x 55.6 mm
Dimensions (L x W x D) :  3.58" x 3.54" x 2.19"

Unit Weight :  0.36 kg (0.79 lb)
