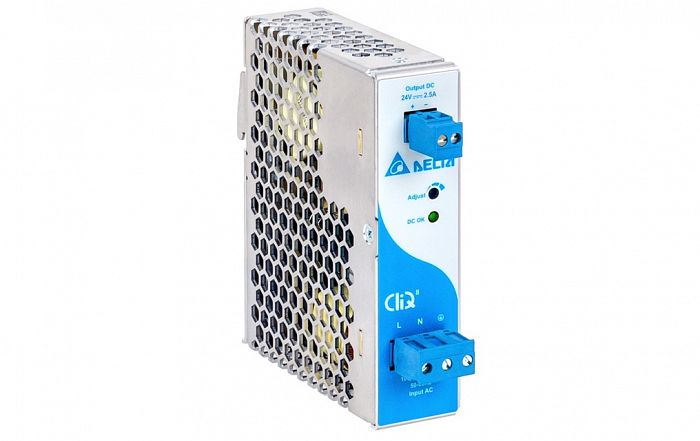

Delta CliQ II series

Universal AC input voltage. Power will not de-rate for the entire input voltage range. Power Boost of 150% for 5 seconds. Full corrosion resistant aluminium chassis. Conformal coating on PCBA to protect against common dust and chemical pollutants. Hazardous Locations approval to ATEX and Class I, Div 2.

MAIN SPecifications DRP024V060W1BA:

Input Voltage Range: 180 - 550Vac (180-305 Vdc)

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24 V

Output Voltage Adjustment Range: 22 - 28 Vdc

Nominal Output Current: 2.5 A

Output Power: 60 W

Dimensions (L x W x D) :  4.76" x 1.26" x 4.92"

Dimensions (L x W x D) : 121 x 32 x 125 mm

Unit Weight :  0.37 kg (0.82 lb)
