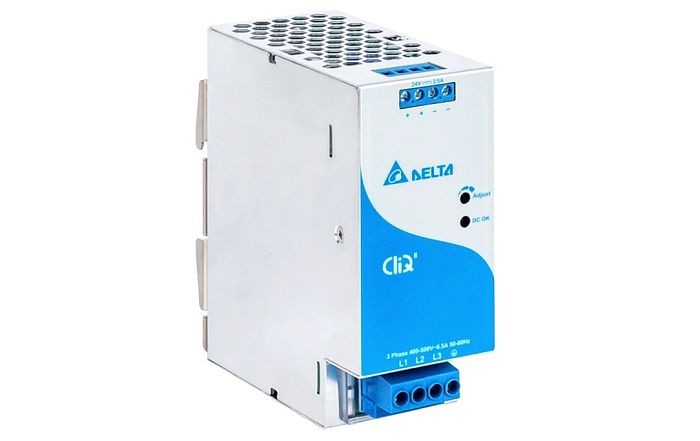

Delta CliQ II series
DRP024V060W3BA
Universal AC input voltage: 3 x 320Vac – 600Vac (3-Phase) or 2 x 360Vac – 600Vac (2-Phase). Power will not de-rate for the entire input voltage range150%. Power Boost for 5 seconds. Full corrosion resistant aluminium chassis. Conformal coating on PCBA to protect against chemical and dust pollutants. Hazardous Locations approval to ATEX and Class I, Div 2 (DRP024V060W3BA).
Main specifications DRP024V060W3BA:
Input Voltage Range: 85 - 264Vac (120-375 Vdc)
Input Frequency Range: 47 - 63 Hz
Nominal Output Voltage: 24 V
Output Voltage Adjustment Range: 22 - 26 Vdc
Nominal Output Current: 2 A
Output Power: 48 W
Dimensions (L x W x D) : 121 x 50 x 117.3 mm
Dimensions (L x W x D) : 4.76" x 1.97" x 4.62"
Unit Weight : 0.66 kg (1.46 lb)
