Worldwide AC input range without power de-rating. 3 x 320Vac-600Vac or 2 x 360Vac-600Vac. Compact, rugged design for ease of handling and installation. 150% Power Boost (steady state peak load) for 5 seconds. With Conformal Coating on Overvoltage / Overcurrent / Over Temperature Protections. IP20 Compliant.

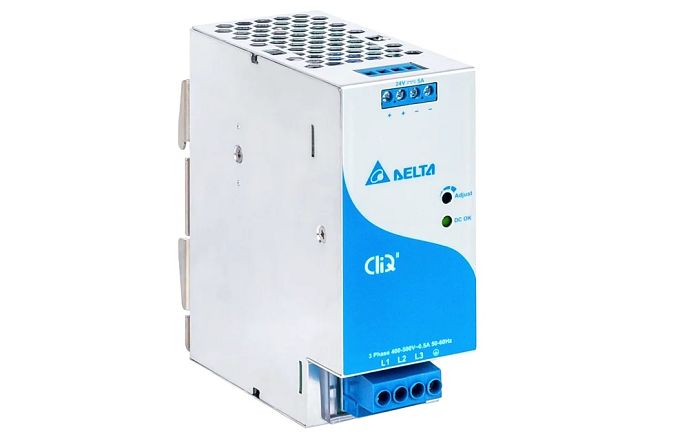

Main Specifications DRP024v120w3bn:

Nominal Input Voltage: 3 x 400 - 500 Vac

Input Voltage Range: 320-600Vac / 450-800 Vdc

Input Frequency Range: 47 - 63 Hz

Nominal Output Voltage: 24 Vdc

Output Voltage Adjustment Range: 24 - 28 Vdc

Nominal Output Current: 5 A

Output Power: 120 W

Dimensions (L x W x D) :  121 x 50 x 117.3 mm
Dimensions (L x W x D) :  4.76" x 1.97" x 4.62"

Unit Weight :  0.66 kg (1.46 lb)
