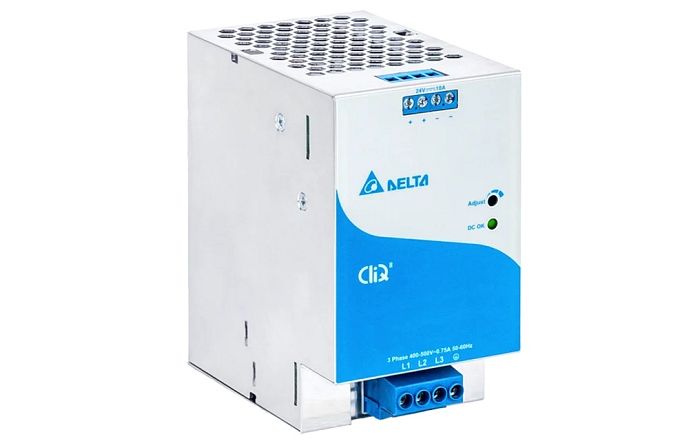

Delta CliQ II series

Universal AC input voltage range 3 x 320-600Vac without power de-rating. Able to operate at 2 x 360-600Vac without power de-rating even when one phase input is lost. Power Boost of 150% for 5 seconds. Full corrosion resistance Aluminium chassis. Conforms to harmonic current IEC/EN 61000-3-2, Class A. Conformal coating on PCBA to protect against chemical and dust pollutants. Hazardous Locations approval to ATEX and Class I, Div 2 available as option.

Main specifications drp024v240w3ba:

Input Voltage Range: 320 - 600Vac ( 450-800 Vdc )

Input Frequency Range: 47 - 63 Hz

Nominal Output Voltage: 24 V

Output Voltage Adjustment Range: 24 - 28 Vdc

Nominal Output Current: 10 A

Output Power: 240 W

Dimensions (L x W x D) :  121 x 70 x 117.3 mm
Dimensions (L x W x D) :  4.76" x 2.76" x 4.62"

Unit Weight :  0.89 kg (1.96 lb)
