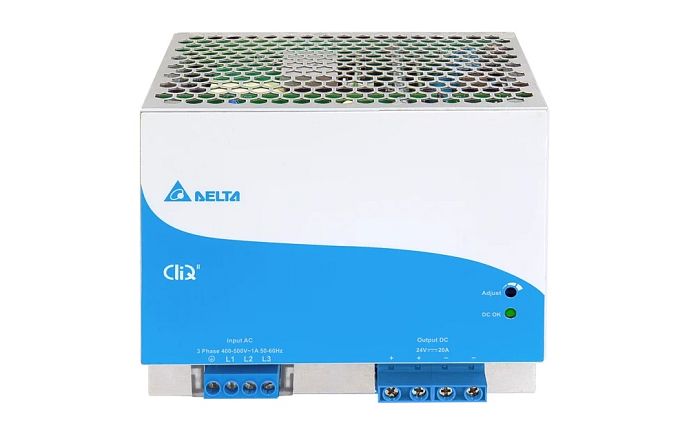

Delta CliQ II series

Worldwide AC input voltage range without power de-rating 3 x 320Vac – 600Vac (3-Phase) or 2 x 360Vac – 600Vac (2-Phase). Power Boost of 150% for 5 seconds and 200% for 2 seconds. Full corrosion resistant Aluminium chassis. Conforms to harmonic current IEC/EN 61000-3-2, Class A. Conformal coating on PCBA to protect against chemical and dust pollutants. Hazardous Locations approval to ATEX and Class I, Div 2 available as option.

Main specifications drp024v480w3ba:

Input Voltage Range: 320-600Vac ( 450-800 Vdc )

Input Frequency Range: 50-60Hz

Nominal Output Voltage: 24-28V

Output Voltage Adjustment Range: 24 - 28 Vdc

Nominal Output Current: 20 A

Output Power: 480 W

Dimensions (L x W x D) :  121 x 140 x 117.3 mm
Dimensions (L x W x D) :  4.76" x 5.51" x 4.62"

Unit Weight :  1.35 kg (2.98 lb)
