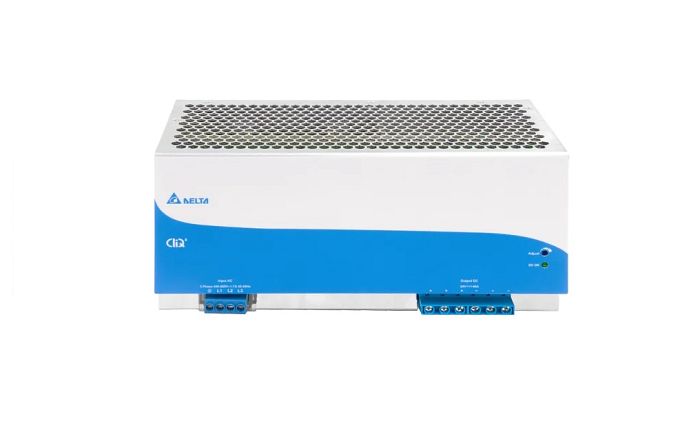

Delta CliQ II series

Worldwide AC input voltage range without power de-rating 3 x 320Vac – 600Vac (3-Phase) or 2 x 380Vac – 600Vac (2-Phase). Power Boost of 150% for 5 seconds. Full corrosion resistant Aluminium chassis. Conforms to harmonic current IEC/EN 61000-3-2, Class A. Conformal coating on PCBA to protect against chemical and dust pollutants. ATEX and Class I, Div 2 Hazardous Locations Ready.

Main specifications DRP024v960w3bn:

Input Voltage Range: 320 - 600 Vac ( 450 - 800 Vdc )

Input Frequency Range: 50 - 60 Hz

Nominal Output Voltage: 24 - 28 V

Output Voltage Adjustment Range: 24 - 28 Vdc

Nominal Output Current: 20 A

Output Power: 960 W

Dimensions (L x W x D) :  121 x 255 x 117.3 mm
Dimensions (L x W x D) :  4.76" x 10.04" x 4.62"

Unit Weight :  2.60 kg (5.73 lb)
