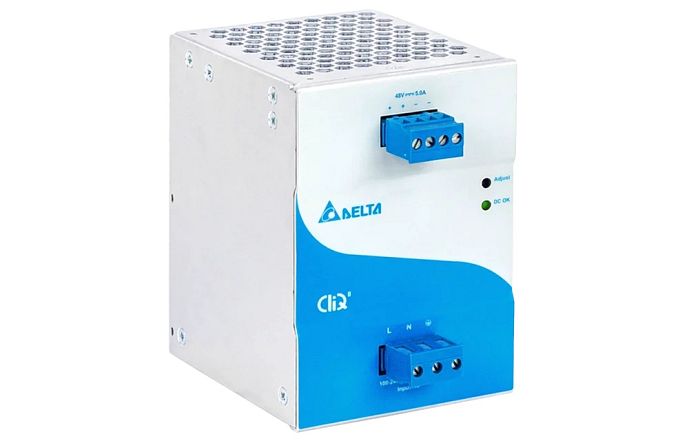

DRP048V240W1BA

Worldwide AC input range without power de-rating. 150% Power Boost (steady state peak load) for 5 seconds. Full corrosion resistant Aluminium chassis. Extreme low temperature cold start at -40°C. Conformal coating on PCBA to protect against chemical and dust pollutants. Hazardous Locations approval to ATEX and Class I, Div 2 (DRP048V240W1BA). Overvoltage / Overcurrent / Over Temperature Protections. IP20 Compliant.

Main specifications drp048v240w1ba:

Input Voltage Range: 85-264Vac ( 120-375 Vdc )

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 48V

Nominal Output Current: 5A

Output Power: 240W

Dimensions (L x W x D) :  121 x 85 x 124.1 mm
Dimensions (L x W x D) :  4.76" x 3.35" x 4.89"

Unit Weight :  0.97 kg (2.14 lb)
