Universal AC input voltage range. Built-in active PFC and up to 90% efficiency. Full power from -25°C to +60°C operation @ 5000m or 16400 ft. altitude. Power Boost of 150% up to 7 seconds. Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection. DNV GL approval for maritime applications. Built-in DC OK Contact and LED indicator for DC OK/ OverloadConformal coating on PCBAs to protect against common dust and chemical pollutants.

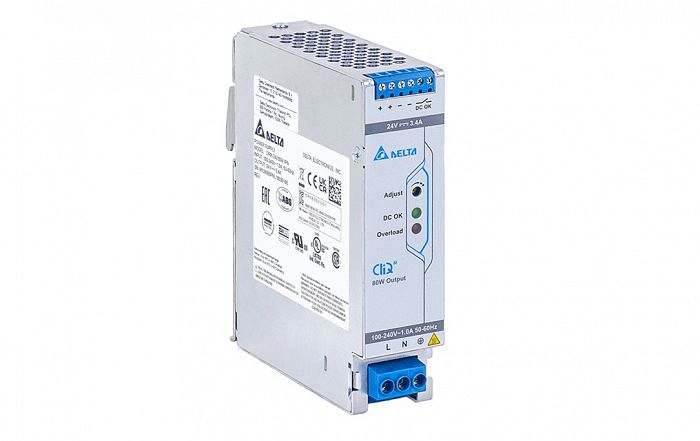

Main specifications DRM-24V80W1PN:

Input Voltage Range: 85-276Vac

Input Frequency Range: 50-60Hz

Nominal Output Voltage: 24V

Nominal Output Current: 3.4A

Output Power: 82W

Dimensions (L x W x D) :  124 x 32 x 102 mm ( 4.88" x 1.26" x 4.02")

Unit Weight :  0.50 kg (1.10 lb)
