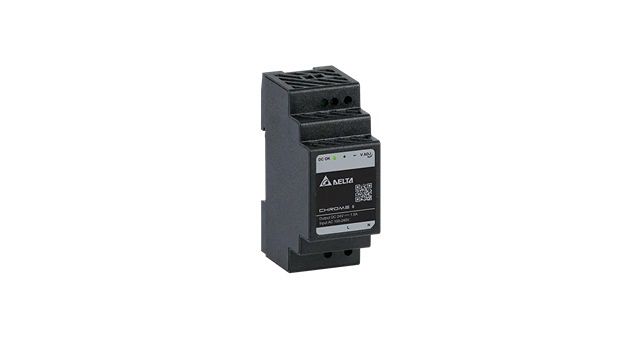

DRC-24V030W1RZ

Class II, Double Isolation (No Earth connection is required). Mechanical dimension are designed to meet DIN 43880 for building automation. Low no load power consumption and compliance with DOE VI efficiency standard. NEC Class 2 / Limited Power Source (LPS) certified. Over Voltage Category III.

main specifications DRC-24V030W1RZ:

Input Voltage Range: 85-264 Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24V

Nominal Output Current: 1.5A

Output Power: 36W

Dimensions (L x W x D) :  87.5 x 35.0 x 55.0 mm (3.44” x 1.38” x 2.17”)

Unit Weight :  0.13 kg (0.29 lb)
