Delta Chrome II series

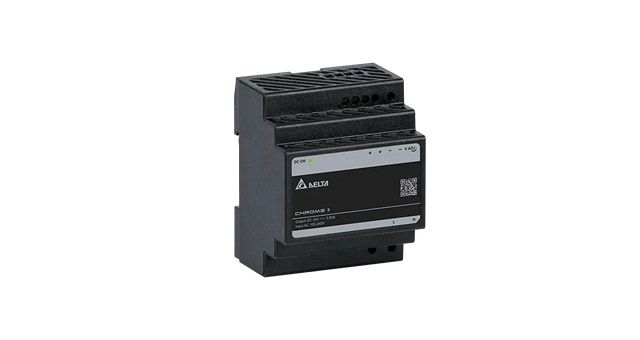

DRC-24V100W1RZ
Class II, Double Isolation (No Earth connection is required). Mechanical dimension are designed to meet DIN 43880 for building automation. Low no load power consumption and compliance with DOE VI efficiency standard. NEC Class 2 / Limited Power Source (LPS) certified. Over Voltage Category III.
main specifications DRC-24V100W1RZ:
Input Voltage Range: 85-264 Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Nominal Output Current: 3.83A
Output Power: 91.92W
Dimensions (L x W x D) : 87.5 x 70 x 55.0 mm (3.44” x 2.76” x 2.17”)
Unit Weight : 0.23 kg (0.51 lb)
