Universal AC input voltage range. Built-in constant current circuit for charging application. High efficiency of up to 94% at 230Vac. Power Boost of 150% for 5 seconds. Advanced Power Boost (APB) of 200% for 50ms. SEMI F47 compliance at 120Vac. Extreme low temperature cold start at -40°C. Built-in DC OK Contact and LED indicator for DC OK. Conformal coating on PCBA to protect against common dust and chemical pollutants.

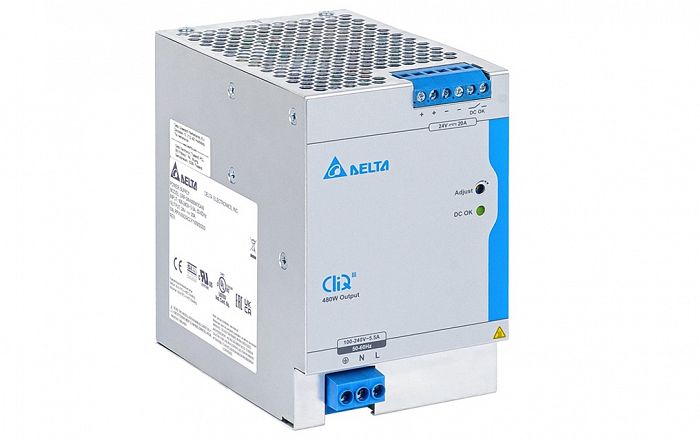

Main specifications DRP-24V480W1CAN:

Input Voltage Range: 100-264Vac (Continuously operating) 88-100Vac (With power de-rating)

Nominal Input Frequency: 50-60Hz

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24V

Output Voltage Adjustment Range: 24-28Vdc

Output Current: 20A

Output Power: 480W

Dimensions: 124 x 82 x 127 mm (4.88" x 3.23" x 5.00")

Unit Weight: 1.20 kg (2.65 lb)
