Universal AC input voltage range. LCD display monitoring the output current / voltage / peak current and temperature. Life time expectancy alarm signal and monitoring. Built-in active PFC with up to 94% efficiency. Power Boost of 150% up to 7 seconds. Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection. DC OK Contact and LED indicator for DC OK/ Overload. Conformal coating on PCBAs to protect against common dust and chemical pollutants.

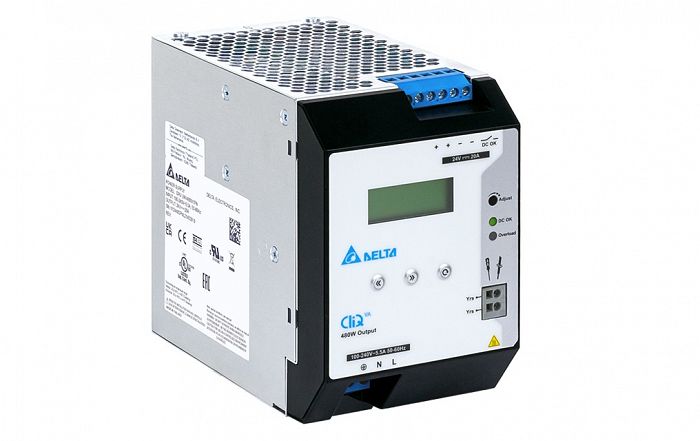

Main specifications DRV-24V480W1PN:

Input Voltage Range: 85-276Vac

Nominal Input Frequency: 50-60Hz

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24V

Output Voltage Adjustment Range: 24-28Vdc

Output Current: 20A

Output Power: 480W

Dimensions: 124 x 82 x 149 mm (4.88" x 3.23" x 5.87")

Unit Weight: 1.45 kg (3.20 lb)
