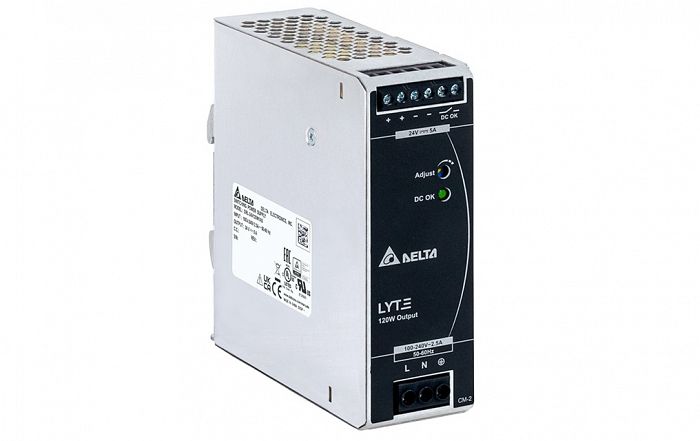

DRL-24V120W1AS

Ultra-compact size and galvanic isolation up to 3.0KVac between input to output and input to ground. Universal AC input voltage and full power from -10°C to +55°C operation. Up to 89.0% efficiency. Low earth leakage current < 0.5mA @ 264Vac. Built-in DC OK relay contact option available. Extreme low temperature cold start at -40°C. NEC Class 2 / Limited Power Source (LPS) certified.

main specifications DRL-24V120W1AS:

Input Voltage Range: 85-264Vac

Input Frequency Range: 47-63Hz

DC Input Voltage Range: 120-375Vdc

Nominal Output Voltage: 24V

Output Voltage Adjustment Range: 22-28Vdc

Output Current: 5A

Output Power: 120W

Dimensions (L x W x D) :  123.6 x 40 x 117.6 mm ( 4.87" x 1.57" x 4.63")

Unit Weight :  0.54 kg (1.19 lb)
