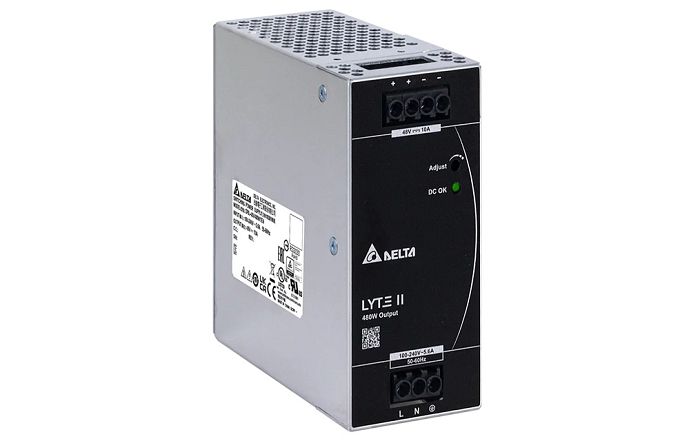

DRL-48V480W1EN

Universal AC input voltage range. Built-in constant current circuit for reactive loads. High power density. Operate from -30°C to +70°C with -40°C Cold Start. Slim type design. Reduced no-load power consumption. Compliance to SEMI F47 @ 200 Vac.

Main specifications DRL-48V480W1EN:

Input Voltage Range: 90-264Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 48V

Output Voltage Adjustment Range: 48-55 Vdc

Nominal Output Current: 10A

Output Power: 480W

Dimensions (L x W x D) : 123.6 x 56 x 116.8 mm (4.87” x 2.20” x 4.60”)

Unit Weight :  0.87 kg (1.92 lb)
