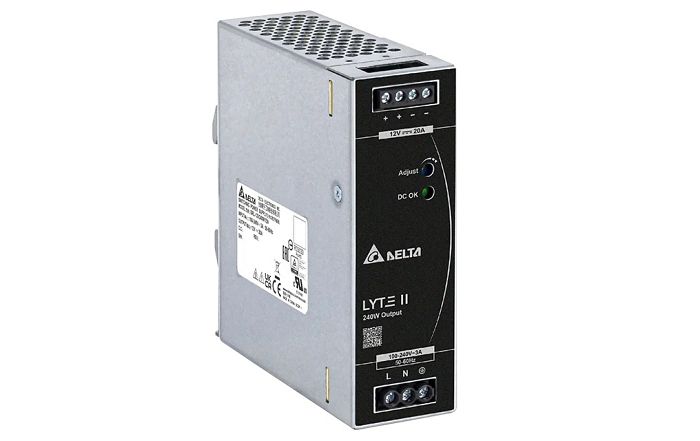

DRL-12V240W1EN

Universal AC input voltage range. Built-in constant current circuit for reactive loads. High power density. Operate from -30°C to +70°C with -40°C Cold Start. Reduced no-load power consumption. Compliance with DOE VI Energy Standard. Compliance to SEMI F47 @ 200Vac.

Main specifications DRL-12V240W1EN:

Input Voltage Range: 90-264Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 12V

Output Voltage Adjustment Range: 10.8-13.2Vdc

Nominal Output Current: 20A

Output Power: 240W

Dimensions (L x W x D) : 123.6 x 40 x 116.8 mm (4.87” x 1.57” x 4.60”)

Unit Weight : 0.62 kg (1.37 lb)
