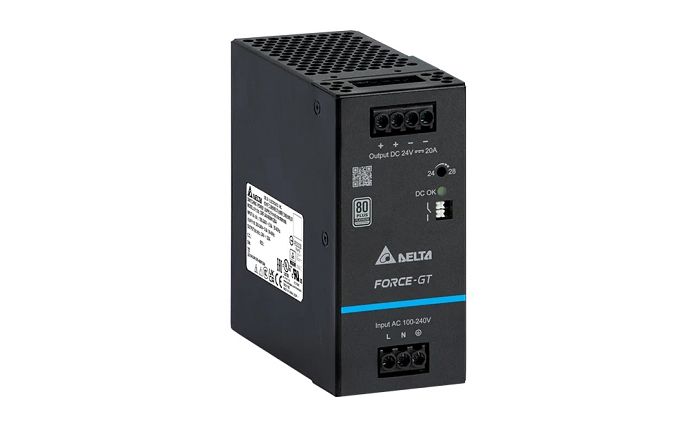

Force-GT series
DRF-24V480W1GBA
Universal AC input voltage range. Built-in constant current circuit for charging applications. Full load operating temperature up to 60°C. Cold start at -40°C. Ultra-Slim design. Long life electrolytic capacitor. Built-in DC OK relay and LED indicator. Conformal coating on PCBAs to protect against common dust and pollutants.
Main specifications DRF-24V480W1GBA:
Input Voltage Range: 90-264Vac
Input Frequency Range: 47-63Hz
Output Voltage Adjustment Range: 24-48Vdc
Output Current: 20A
Output Power: 480W
Dimensions (LxWxD): 123.6 x 56 x 116.8 mm (4.87” x 2.20” x 4.60”)
Unit Weight: 0.88 kg (1.94 lb)
