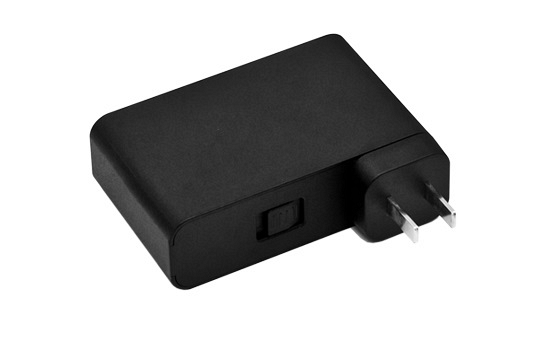

MDS-030AAC12

MDS-030AAC05, 12, 15, 24 Meet DOE Level VI & ErP 2017. Low touch current. Suitable for type BF applications. Detachable AC plug with multiple country options. Class B EMI and 4th Edition Immunity Compliant. Safety rated for medical and IT applications. IP22 ingress protection rating. 2 × MOPP isolation. 500K hours MTBF. 3 years warranty

Main specifications mds-030aac12:

Input Voltage Range: 85-264Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 12V

Nominal Output Current 2A

Output Power: 24W

Dimensions (L x W x D) :  88 x 53.5 x 27.5 mm

Dimensions (L x W x D) :  3.46" x 2.11" x 1.08"

Unit Weight :  0.15kg (0.33 lb)
